Financial Module — architecture¶

Note

This page publishes oasislmf/pytools/fm/TECHNICAL.md verbatim, by include rather than by copy, so the architecture description cannot drift from the one kept beside the code. Edit that file, not this page.

This document provides detailed technical documentation for the Financial Module (FM) sparse computation implementation. It covers the data structures, algorithms, and computation flow used to calculate insured losses.

Overview¶

The FM sparse computation engine processes insurance/reinsurance losses through a hierarchical node structure. It reads ground-up losses (GUL), insurance loss (IL) or previous cycle or re-insurance loss (RI) from an input stream, applies financial terms (deductibles, limits, shares) at each level of the hierarchy, and outputs the computed insured losses.

Key Design Principles¶

Sparse Storage: Only non-zero loss samples are stored, reducing memory usage significantly
Bottom-Up Traversal: Computation proceeds from items (leaves) up to the root
In-Place Modification: Results are computed in-place to minimize memory allocation
JIT Compilation: Critical functions use Numba for near-native performance

Module Structure¶

fm/
├── manager.py          # Entry point, orchestrates the computation
├── financial_structure.py  # Parses static input files into computation-ready arrays
├── compute_sparse.py   # Core computation engine
├── back_allocation.py  # Loss distribution back to children
├── stream_sparse.py    # Binary stream reading/writing
├── policy.py           # Financial term calculations (calc rules)
├── policy_extras.py    # Calc rules with extras tracking (deductible, over_limit, under_limit)
└── common.py           # Shared constants and data types

Data Structures¶

CSR-Inspired Sparse Storage¶

The computation uses a Compressed Sparse Row (CSR) inspired format to store loss data efficiently. This is crucial because most samples may have zero loss, and storing all samples would waste memory.

For N nodes, each with variable number of samples:

sidx_indptr:  [0, 3, 7, 10, ...]  # Pointers to start of each node's data
sidx_val:     [-3, -1, 5, -3, -1, 2, 8, ...]  # Sample indices
loss_val:     [100, 50, 25, 200, 100, 75, 30, ...]  # Corresponding losses

Node 0: sidx_val[0:3] = [-3, -1, 5], loss_val[0:3] = [100, 50, 25]
Node 1: sidx_val[3:7] = [-3, -1, 2, 8], loss_val[3:7] = [200, 100, 75, 30]

Sample Index (sidx) Values¶

Special negative indices carry metadata:

sidx	Constant	Meaning
-5	MAX_LOSS_IDX	Maximum possible loss
-4	CHANCE_OF_LOSS_IDX	Probability of non-zero loss
-3	TIV_IDX	Total Insured Value
-2	(ignored)	Standard deviation
-1	MEAN_IDX	Mean/expected loss
1..N	(samples)	Monte Carlo sample indices

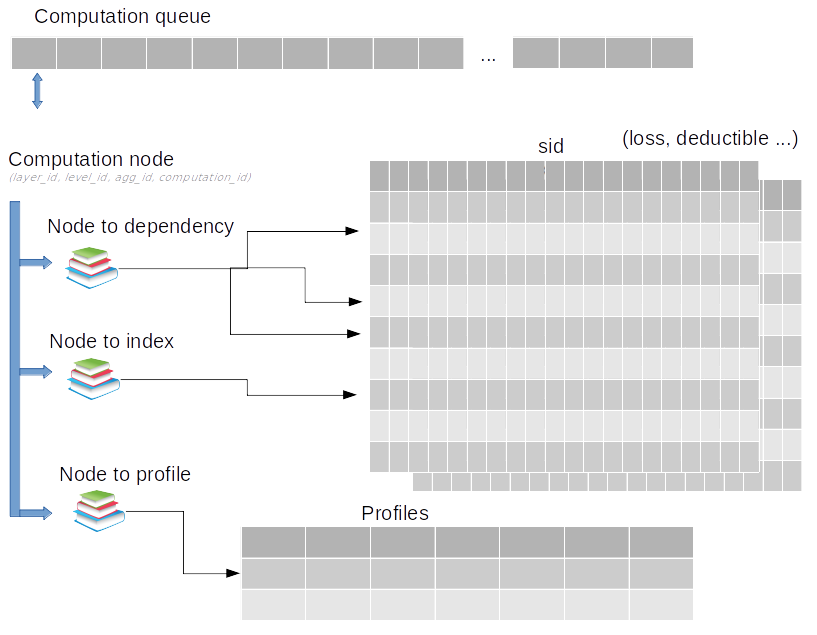

Node Array Structure¶

Each node in nodes_array contains:

node_dtype = np.dtype([
    ('node_id', 'i4'),      # Unique node identifier
    ('agg_id', 'i4'),       # Aggregation ID from fm_programme
    ('level_id', 'i4'),     # Hierarchy level (1 = items)
    ('layer_len', 'i4'),    # Number of output layers
    ('profile_len', 'i4'),  # Number of profiles (may differ from layer_len)
    ('parent', 'i4'),       # Index into node_parents_array
    ('parent_len', 'i4'),   # Number of parents
    ('children', 'i4'),     # Index into children array
    ('loss', 'i4'),         # Index into loss_indptr
    ('extra', 'i4'),        # Index into extras_indptr (or null_index)
    ('net_loss', 'i4'),     # Index for net loss storage
    ('output_ids', 'i4'),   # Index into output_array
    ('profiles', 'i4'),     # Index into node_profiles_array
    ('cross_layer_profile', 'i1'),  # True if single profile for all layers
])

Computation Index Structure¶

The compute_idx tracks computation state:

compute_idx_dtype = np.dtype([
    ('compute_i', 'i4'),           # Current node being processed
    ('next_compute_i', 'i4'),      # End of current level / start of next
    ('level_start_compute_i', 'i4'), # Start of current level (for output)
    ('sidx_i', 'i4'),              # Next sidx array index
    ('sidx_ptr_i', 'i8'),          # Next position in sidx_val
    ('loss_ptr_i', 'i8'),          # Next position in loss_val
    ('extras_ptr_i', 'i8'),        # Next position in extras_val
])

Extras Array¶

Extras track financial term effects for back allocation:

extras_val[i] = [deductible, overlimit, underlimit]

# deductible: Amount deducted from loss
# overlimit:  Amount exceeding the policy limit
# underlimit: Remaining capacity (limit - loss)

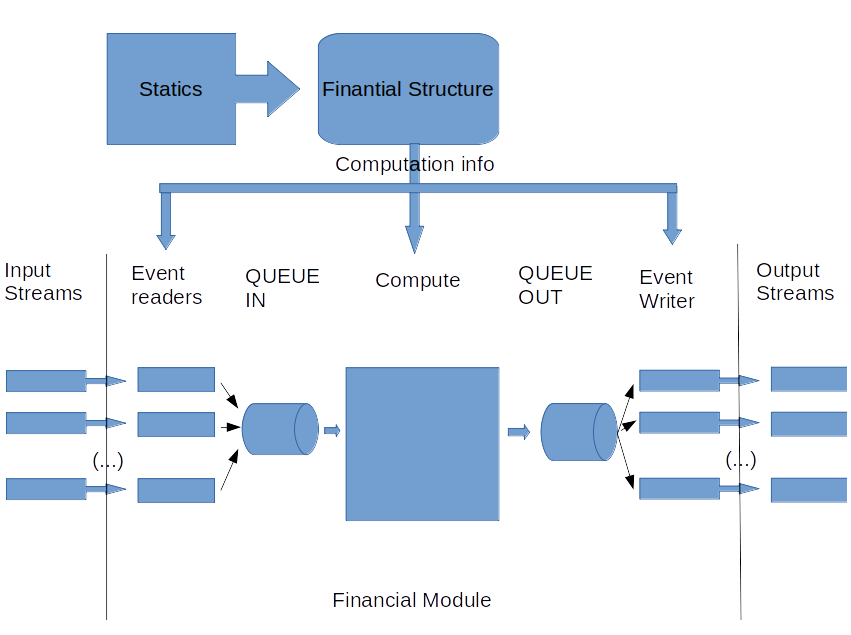

Computation Flow¶

High-Level Algorithm¶

For each event:
    1. Read item losses from input stream into sparse arrays
    2. For each level (bottom to top):
        For each node at this level:
            a. AGGREGATE: Sum children losses
            b. APPLY PROFILE: Apply financial terms
            c. BACK ALLOCATE: Distribute results to base children
            d. QUEUE PARENTS: Add parents for next level
    3. Write output losses to stream

Level Traversal¶

The computes array acts as a queue:

Initial state (after reading items):
computes = [item1, item2, item3, 0, ...]
            ^compute_i       ^next_compute_i

After processing level 1:
computes = [item1, item2, item3, 0, parent1, parent2, 0, ...]
                                   ^compute_i        ^next_compute_i

The zero acts as a level delimiter. When computes[compute_i] == 0, we’ve finished the current level.

Children Tracking¶

The children array tracks which children have been seen for each parent:

children[parent['children']] = count
children[parent['children'] + 1] = child1_id
children[parent['children'] + 2] = child2_id
...

Aggregation¶

When a node has multiple children, their losses must be aggregated before applying financial terms.

Algorithm¶

def aggregate_children(node, children_count, ...):
    # Use dense temporary array for accumulation
    temp_node_loss.fill(0)

    for each child:
        child_sidx = sidx_val[child's range]
        child_loss = loss_val[child's range]

        for i, sidx in enumerate(child_sidx):
            temp_node_sidx[sidx] = True  # Mark as present
            temp_node_loss[sidx] += child_loss[i]  # Accumulate

    # Convert back to sparse storage
    for sidx in all_sidx:
        if temp_node_sidx[sidx]:
            sidx_val[ptr] = sidx
            loss_val[ptr] = temp_node_loss[sidx]
            ptr += 1

Single Child Optimization¶

When a node has only one child, no aggregation is needed. The child’s storage can be reused directly:

if children_count == 1:
    storage_node = child  # Reuse child's arrays
else:
    storage_node = parent  # Create new storage

Profile Application¶

Financial profiles define the calc rules (deductibles, limits, shares) applied at each node.

Profile Types¶

Per-Layer Profiles: Each layer has its own profile
- profile_len == layer_len
- cross_layer_profile = False
Cross-Layer Profiles: One profile applies to merged layers
- cross_layer_profile = True
- Losses summed across layers, profile applied, then back-allocated
Step Policies: Multiple profile steps for one layer
- node_profile['i_start'] < node_profile['i_end']
- Steps applied sequentially

Profile Application Flow¶

for profile_i in range(profile_len):
    profile = get_profile(node, profile_i)

    if profile has steps (i_start < i_end):
        loss_in = current_loss
        loss_out = temp_array

        for step_i in range(i_start, i_end):
            calc(fm_profile[step_i], loss_out, loss_in, ...)

        # Back allocate results
        back_alloc(...)

Calc Rules¶

The calc function applies financial terms based on calcrule_id:

Rule	Description
1	Deductible and limit
2	Deductible, attachment, limit
3	Franchise deductible
12	Deductible % TIV
14	Limit % loss
…	(see policy.py for full list)

Back Allocation¶

After applying financial terms at an aggregate level, results must be distributed back to individual items.

Allocation Rules¶

Rule	Description	Factor Calculation
0	No allocation	Output at aggregate level only
1	Proportional to input	`factor = output / sum(original_input)`
2	Pro-rata (proportional to computed)	`factor = output / input` at each level

Rule 2 Algorithm¶

def back_alloc_a2(children, loss_in, loss_out, ...):
    if single_child:
        loss_in[:] = loss_out  # Direct assignment
    else:
        # Compute factor for each sample
        for sidx in node_sidx:
            factor[sidx] = loss_out[sidx] / loss_in[sidx]

        # Apply factor to each child
        for child in children:
            for sidx in child_sidx:
                child_loss[sidx] *= factor[sidx]

Extras Back Allocation¶

When tracking extras (deductible, overlimit, underlimit), allocation is more complex:

# Deductible change
deductible_delta = extra_after - extra_before

if deductible_delta >= 0:
    # Deductible increased: allocate by loss
    ded_factor = delta / loss_in
else:
    # Deductible decreased: reallocated to loss
    if underlimit > 0:
        ded_factor = delta / underlimit  # By remaining capacity
    else:
        ded_factor = delta / deductible  # By existing deductible

The sign convention:

Positive factor: additive (child_value += factor * base)
Negative factor: multiplicative (child_value *= -factor)

Layer Back Allocation¶

For cross-layer profiles, the merged result is distributed to layers:

# loss_in = sum of all layers (merged)
# loss_out = after profile application

factor = loss_out / loss_in

for layer in layers:
    layer_loss_after = layer_loss_before * factor

Stream I/O¶

Input Stream Format¶

Header:
  stream_type: int32 (GUL_STREAM_ID, FM_STREAM_ID, or LOSS_STREAM_ID)
  max_sidx: int32

Per item:
  event_id: int32
  item_id: int32
  [sidx: int32, loss: float32]*  # Repeated until delimiter
  delimiter: sidx=0, loss=0.0

Reading State Machine¶

State: HEADER (item_id == 0)
    Read event_id, item_id
    Initialize node storage
    Transition to: DATA

State: DATA (item_id != 0)
    Read sidx, loss
    If sidx == 0: delimiter -> HEADER
    If sidx == -2: ignore (std dev)
    If sidx == -4: store in pass_through
    Else: add to sparse arrays

Output Stream Format¶

Same format as input. The writer iterates through output nodes:

for node in output_nodes:
    write(event_id, output_id)
    write(-5, max_loss)  # Special indices first
    write(-4, chance_of_loss)
    write(-3, tiv)
    write(-1, mean_loss)
    for sidx in positive_samples:
        if loss[sidx] > 0:
            write(sidx, loss[sidx])
    write(0, 0.0)  # Delimiter

Memory Management¶

Array Sizing¶

Arrays are pre-allocated based on worst-case estimates:

max_sidx_count = max_sidx_val + EXTRA_SIDX_COUNT  # Per node
sidx_val_size = node_count * max_sidx_count
loss_val_size = loss_pointer_count * max_sidx_count

Low Memory Mode¶

When low_memory=True, large arrays use memory-mapped files:

if low_memory:
    sidx_val = np.memmap(path, mode='w+', shape=size, dtype=dtype)
else:
    sidx_val = np.zeros(size, dtype=dtype)

Per-Event Reset¶

After each event, dynamic arrays are reset:

def reset_variable(children, compute_idx, computes):
    computes[:compute_idx['next_compute_i']].fill(0)
    children.fill(0)
    compute_idx['next_compute_i'] = 0

Performance Considerations¶

Numba JIT Compilation¶

All critical inner loops use @njit(cache=True):

First run compiles and caches
Subsequent runs use cached machine code
fastmath=True enables SIMD optimizations

Sparse vs Dense Trade-offs¶

Operation	Sparse	Dense
Storage	O(nnz)	O(n)
Random access	O(log n)	O(1)
Iteration	O(nnz)	O(n)
Aggregation	Requires conversion	Direct

The implementation converts sparse to dense for aggregation, then back to sparse for storage.

Memory Access Patterns¶

Sequential access: sidx_val, loss_val iteration
Random access: temp_node_loss[sidx] during aggregation
Cache efficiency: Process nodes in order to maximize locality

Avoiding Python Overhead¶

No Python objects in hot paths
Pre-allocated arrays (no dynamic allocation in loops)
Numba-compatible data types only

Debugging Tips¶

Error Handling¶

On computation error, event_error.json is written:

{
    "event_index": 42,
    "event_id": 12345,
    "agg_id": 7,
    "node_level_id": 3
}

Enabling Debug Output¶

Uncomment print statements in compute_sparse.py:

# print('level', level, compute_node['agg_id'], ...)
# print('ba', child['level_id'], child['agg_id'], ...)

Verifying Results¶

Use compare.py to compare two FM output streams:

from fm.compare import compare_streams
result = compare_streams(gul_stream, fm_stream1, fm_stream2, precision=5)
